Benefits and Features：

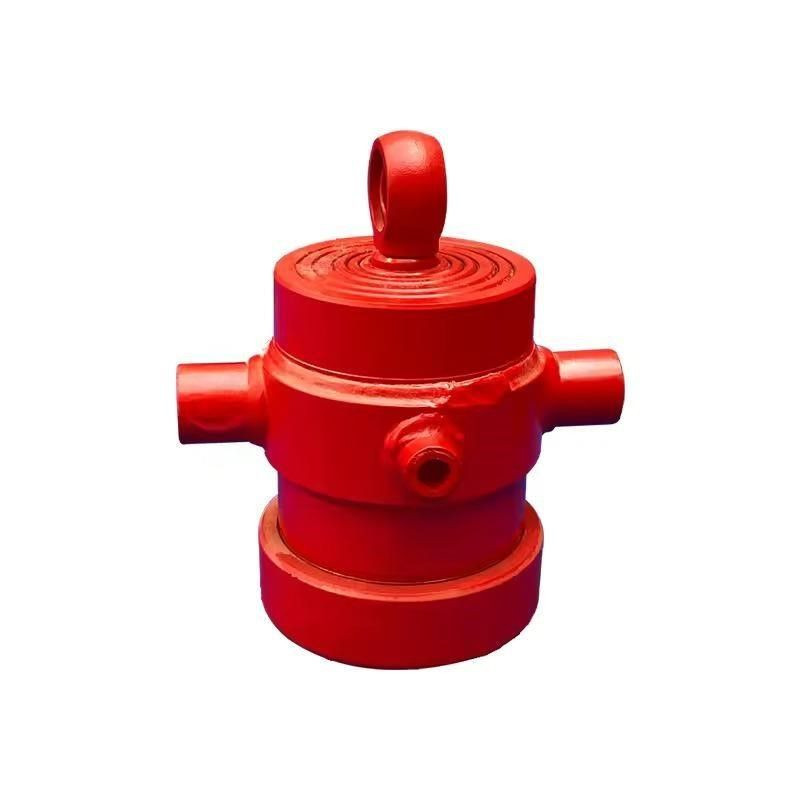

Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure
|
Type |
cylinder dia |
rated pressure |
installation distance |
stroke |
total length (mm) |
weight |
|
|
YJ129-3-3220 |
129 |
22 |
343 |
3220 |
1387 |
191 |
|
|
YJ129-4-3480 |
129 |
22 |
343 |
3480 |
1218 |
178 |
|
|
YJ137-3-3830 |
137 |
22 |
343 |
3830 |
1640 |
244 |
|
|
YJ137-3-4280 |
137 |
22 |
343 |
4280 |
1860 |
268 |
|
|
YJ137-4-4280 |
137 |
22 |
343 |
4280 |
1455 |
236 |
|
|
YJ157-4-3830 |
157 |
22 |
343 |
3830 |
1350 |
260 |
|
|
YJ157-4-4650 |
157 |
22 |
343 |
4650 |
1555 |
280 |
|
|
YJ157-4-5000 |
157 |
22 |
343 |
5000 |
1650 |
300 |
|
|
YJ157-5-3830 |
157 |
22 |
343 |
3830 |
1170 |
230 |
|
|
YJ157-5-4650 |
157 |
22 |
343 |
4650 |
1275 |
245 |
|
|
YJ179-4-4280 |
179 |
22 |
343 |
4280 |
1480 |
235 |
|
|
YJ179-4-5390 |
179 |
22 |
343 |
5390 |
1755 |
360 |
|
|
YJ179-4-6100 |
179 |
22 |
343 |
6100 |
1940 |
390 |
|
|
YJ179-5-3830 |
179 |
22 |
343 |
3830 |
1170 |
265 |
|
|
YJ179-5-4650 |
179 |
22 |
343 |
4650 |
1282 |
283 |
|
|
YJ179-5-5000 |
179 |
22 |
343 |
5000 |
1405 |
305 |
|
|
YJ179-5-5800 |
179 |
22 |
343 |
5800 |
1570 |
350 |
|
|
YJ179-5-6300 |
179 |
22 |
343 |
6300 |
1655 |
360 |
|
|
YJ179-5-7300 |
179 |
22 |
343 |
7300 |
1850 |
400 |
|
|
YJ191-5-5780 |
191 |
22 |
343 |
5780 |
1530 |
273 |
|
|
YJ191-5-6500 |
191 |
22 |
343 |
6500 |
1670 |
410 |
|
|
YJ191-5-6800 |
191 |
22 |
343 |
6800 |
1735 |
738 |
|
|
YJ191-5-7300 |
191 |
22 |
343 |
7300 |
1835 |
458 |
|
|
YJ191-54-6100 |
191 |
22 |
343 |
6100 |
1955 |
273 |
|
|
YJ196-4-6180 |
196 |
22 |
343 |
6180 |
1940 |
479 |
|
|
YJ196-5-6350 |
196 |
22 |
343 |
6350 |
1710 |
450 |
|
|
YJ202-4-6100 |
202 |
22 |
343 |
6100 |
1935 |
479 |
|
|
YJ202-5-6800 |
202 |
22 |
343 |
6800 |
1765 |
465 |
|
|
YJ202-6-7000 |
202 |
22 |
343 |
7000 |
1570 |
440 |
|
|
YJ214-5-7300 |
214 |
22 |
343 |
7300 |
1900 |
530 |
|
|
YJ214-7-7600 |
214 |
22 |
343 |
7600 |
1455 |
450 |
|
|
YJ240-5-9030 |
240 |
22 |
343 |
9030 |
2270 |
820 |
|
|
Pipe dia: 202/179/157/137/118/99/80 240/214/191/169/149/129/110/90/70 |
|||||||

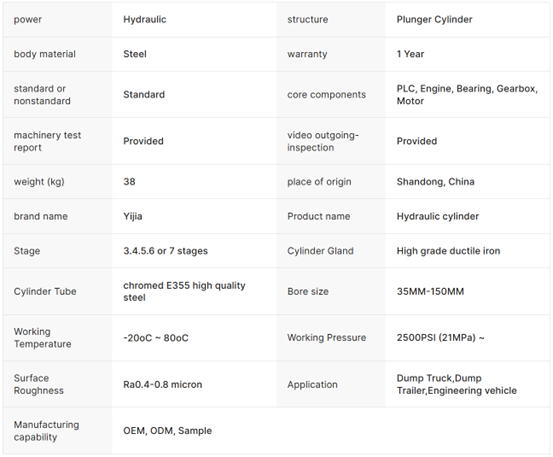

Key Attributes:
