Benefits and Features：
●Integrated shaft head end cover, easy installation and disassembly, easy management, and oil storage tank
●Super strong bearing capacity, long life, low roller resistance bearing, lightweight and compact construction
●Special grease has good uniformity and lubrication effect under any climatic conditions
●Soft asbestos long life brake iron shoe, stable braking, high friction and good thermal stability
●Carnap link between brake shoe and support pin, easy installation, automatic compensation and quick return
●Locally reinforced axial beams, large torsion and bending sections, strong torsion and bending resistance
●Bearing seal adopts floating oil retaining ring structure design, easy installation and reliable seal

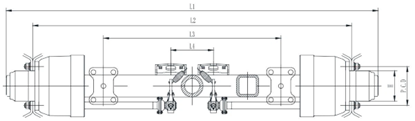

| Axle Type | Max Capacity(t) | Track(mm) L2 | Brake(mm) | Spring Seat Installation | Axle Beam (mm) | Centre Distance Of Brake Chamber (mm) | Wheel Fixing Stud | Wheel Fixing P.C.D (mm) | Wheel Fixing H(mm) | Total Length(mm) L1 | Recommended Wheel | Axle Weight(kg) |
| JS11Y6D51 | 11 | 1850 | $311*190$ | $\ge 1000$ | 127 | 420 | $10*M22*1.5$ ISO | 225 | 175.8 | $\sim 2166$ | 6.5-16 | 275 |
| JS11Y6D50 | 11 | 1850 | $311*190$ | $\ge 1000$ | 127 | 250 | $10*M22*1.5$ ISO | 225 | 175.8 | $\sim 2160$ | 6.5-16 | 282 |
| JS11K2D50 | 11 | 1850 | $311*190$ | $\ge 1000$ | 127 | 250 | $10*M22*1.5$ ISO | 225 | 175.8 | $\sim 2160$ | 6.5-16 | 270 |
