PRODUCT CHARACTERISTICS
One-piece high quality special heat tube, low alloy steel shaft bearing capacity is strong, light weight, long life and other characteristics;
Product configuration wear sensor alarm device;
The wheel hub system maintenance simple, wearing parts in any place can buy;
The caliper, brake disc, gas chamber adopts domestic well-known brand, has many characteristics, such as crack resistance, long service life.

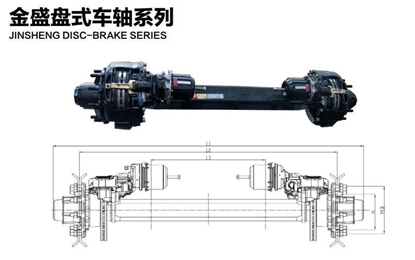

| 轴型型号 Axle Type | 允许载荷 Max. Capacity(T) | 轮距 L2 Track(mm) | 盘式制动器 Disc Brake(mm) | 轴承 Bearing | 钢板弹簧中心 L3 (Spring Seat Installation L3) | 螺栓 Bolt | 轮毂螺栓连接 Wheel Fixing | 总长 L1(mm) Total Length | 适用轮胎 Recommended Wheel | 整轴重量 Total Weight |
| JS13F1N08A | 13 | 1840 | Disc: ⌀430 × 45 | HM518445/10 | ≥930 | ⌀150 | 10 × M22 × 1.5 ISO | 335 | 280 | 2180 |
| JS13F1N07A | 13 | 1840 | Disc: ⌀430 × 45 | HM518445/10 | ≥930 | ⌀150 | 10 × M22 × 1.5 ISO | 285.75 | 219.8 | 2180 |
